The Delco 10DN is an early GM alternator and has an external voltage regulator.

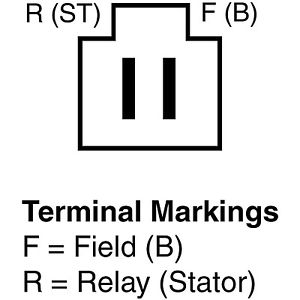

10DN rear connector points

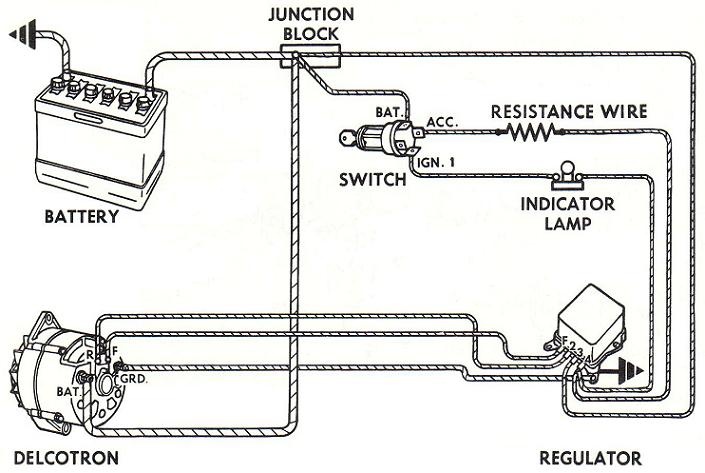

F(plug) to #1 on VR
R(plug) to #2 on VR
BAT to supply buss junction
Gnd - Ground

The Resistance wire here may be Pink in color
