Patches from Classic Enterprises.
Important inexpensive tools I used all from Harbor Freight:
Air metal shear
Air punch/flange tool
240 volt Mig Welder
I would add two comments to the fender patch video.
1) On my next ones I sheet metal screw a temporary lateral angle iron
straightener between the patch and fender until the joint is welded up.
Without this the Bondo on the patches in the video was deeper than I would desire.
2) The rubber spacer between fender and firewall like SI offers is important
as it provides 1/4" more clearance for the door opening without binding.
Video
![](champfend1.jpg)
![](champfend1b.jpg)

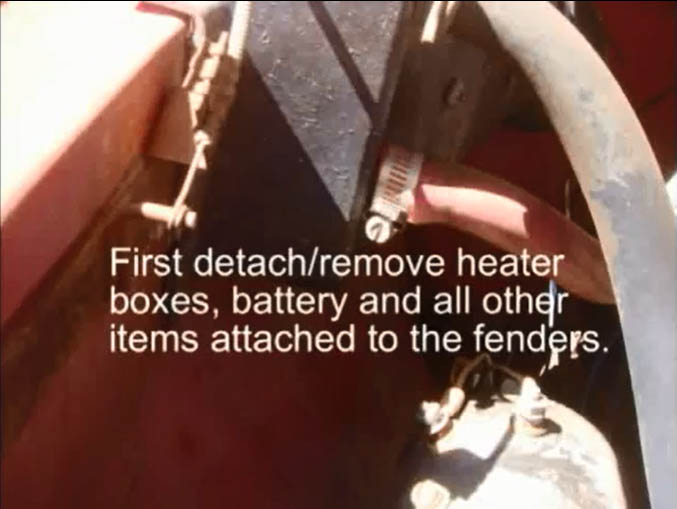

![](champfend3.jpg)
![](champfend4.jpg)

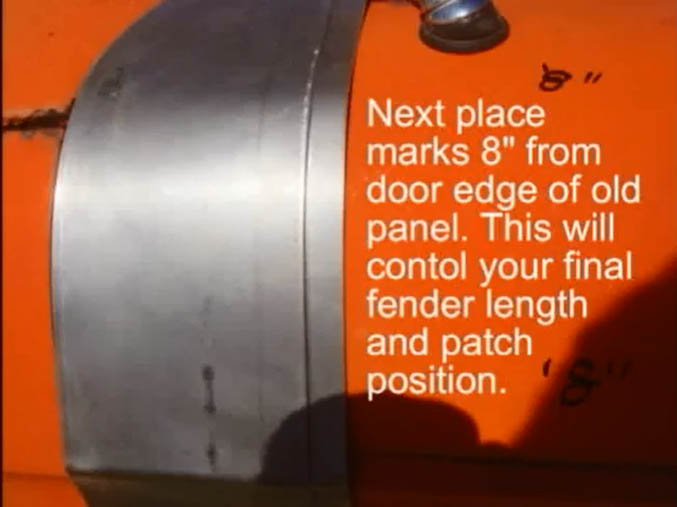

![](champfend5.jpg)

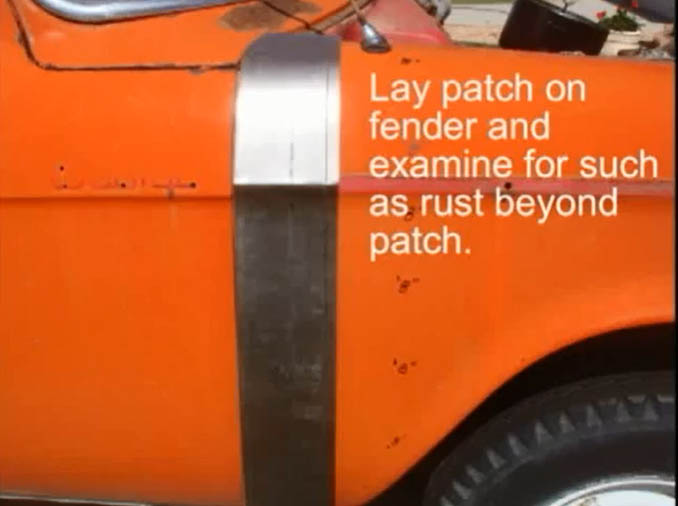

![](champfend6.jpg)
![](champfend7.jpg)

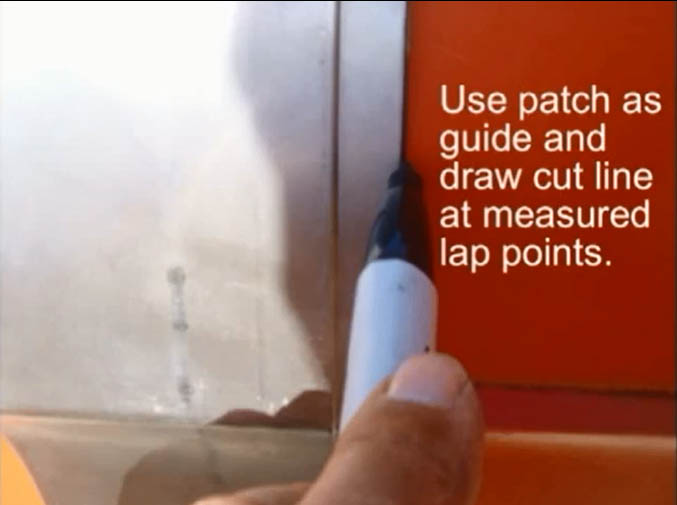

![](champfend8.jpg)
![](champfend9.jpg)
![](champfend10.jpg)
![](champfend11.jpg)
![](champfend12.jpg)

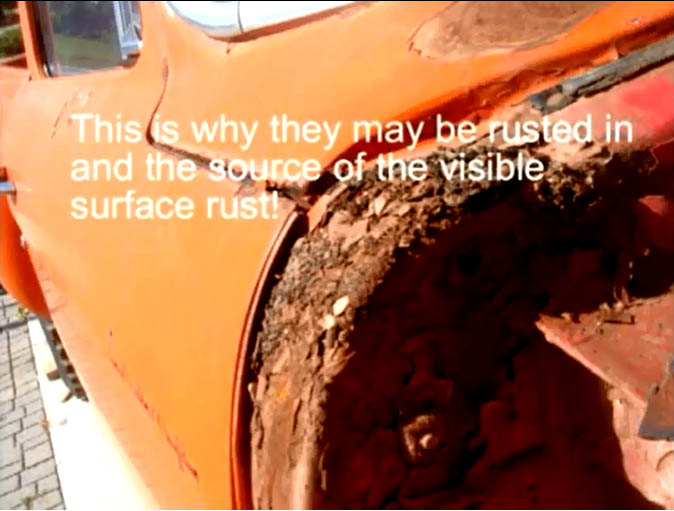

![](champfend13.jpg)

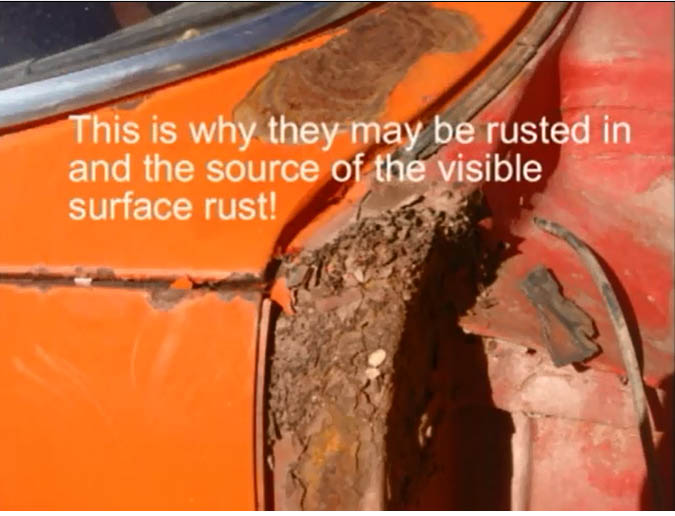

![](champfend14.jpg)

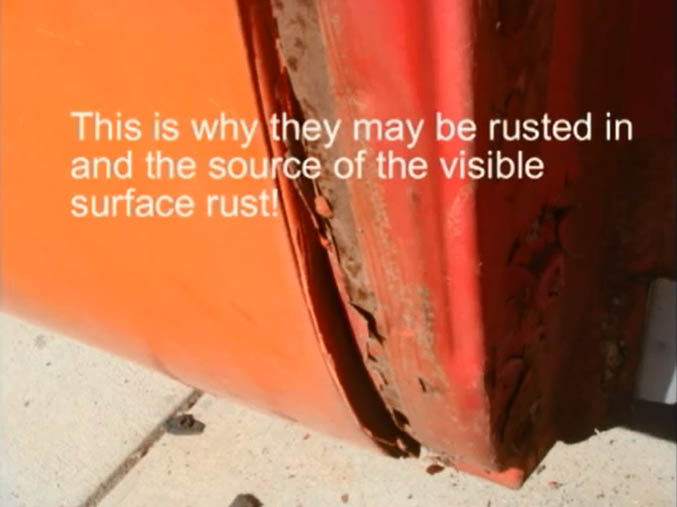

![](champfend15.jpg)
![](champfend16.jpg)

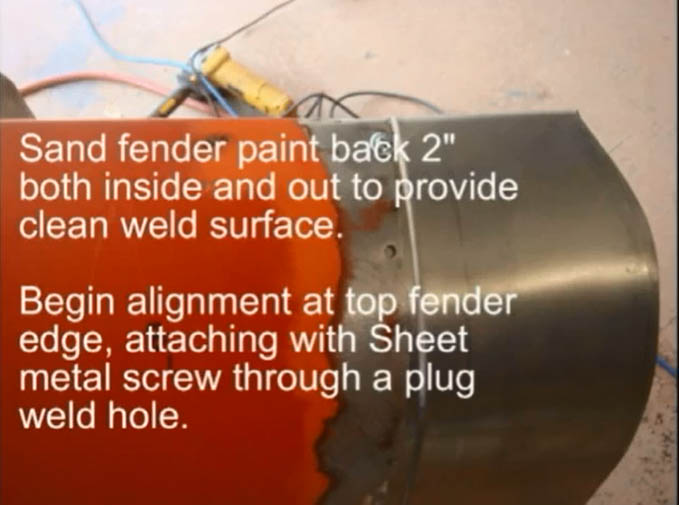

![](champfend17.jpg)
![](champfend18.jpg)
![](champfend19.jpg)

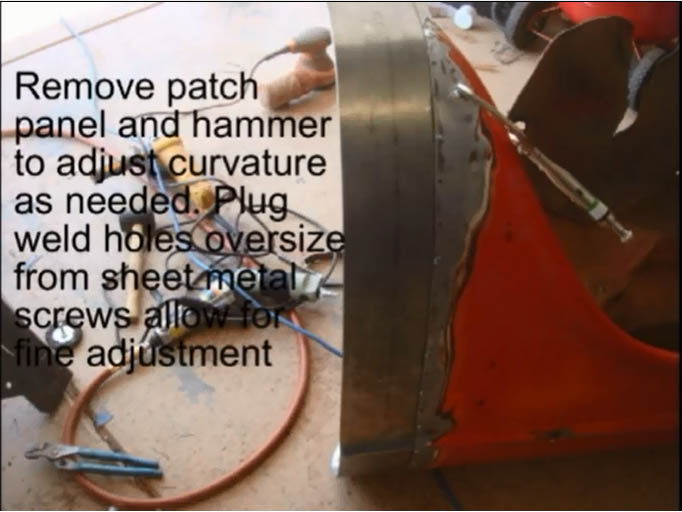

![](champfend20.jpg)
![](champfend21.jpg)

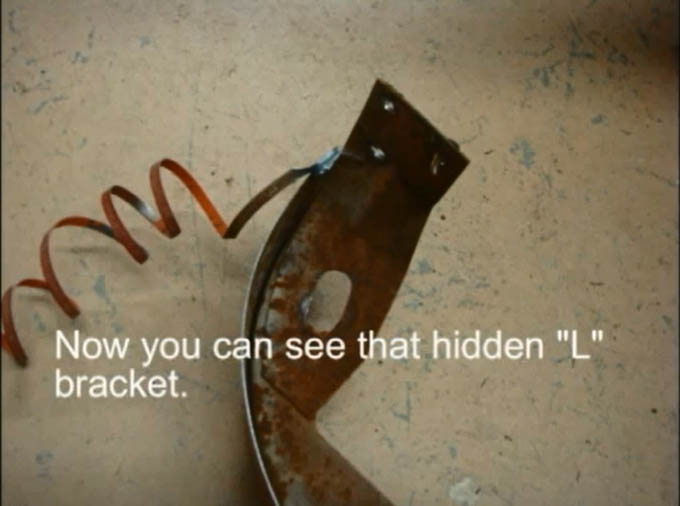

![](champfend22.jpg)
![](champfend23.jpg)

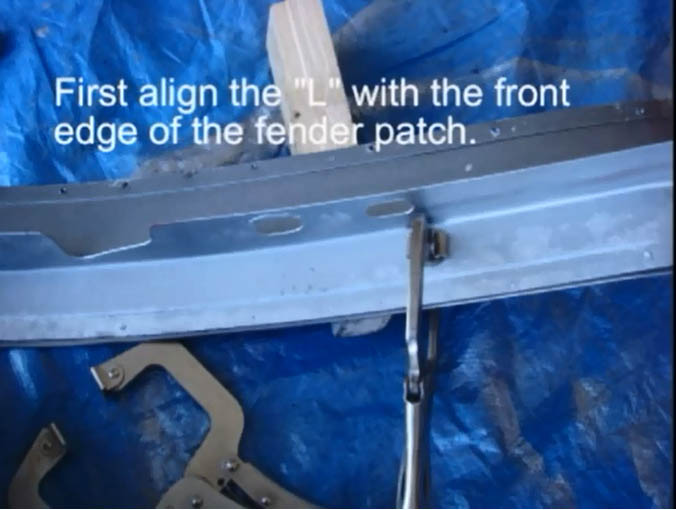

![](champfend24.jpg)

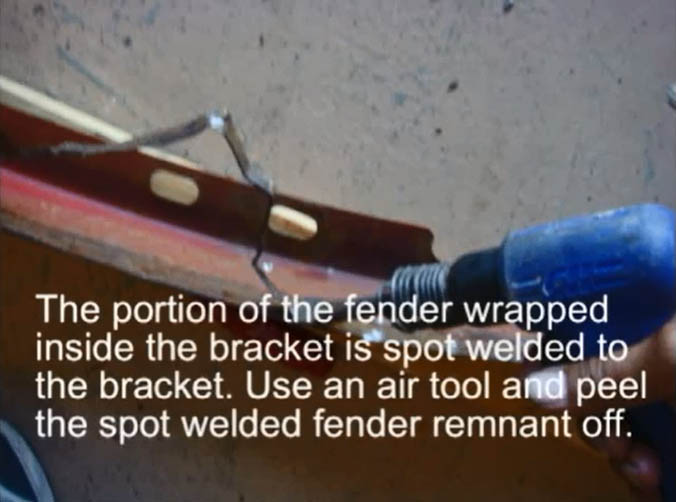

![](champfend25.jpg)
![](champfend26.jpg)

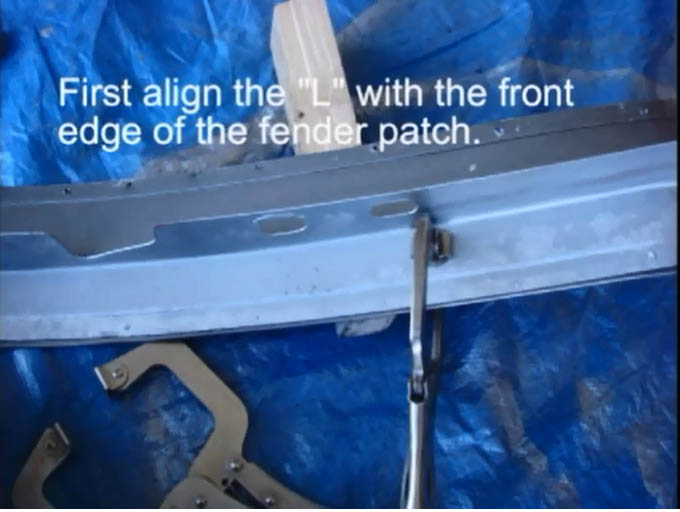

![](champfend27.jpg)
![](champfend27.jpg)
![](champfend29.jpg)

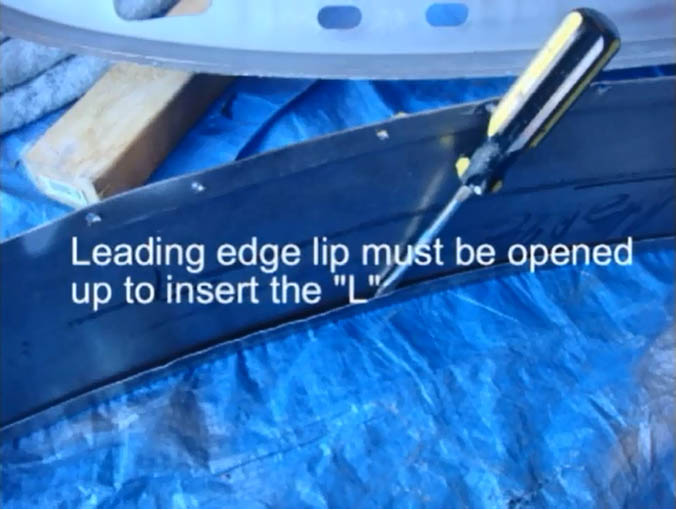

![](champfend30.jpg)
![](champfend31.jpg)

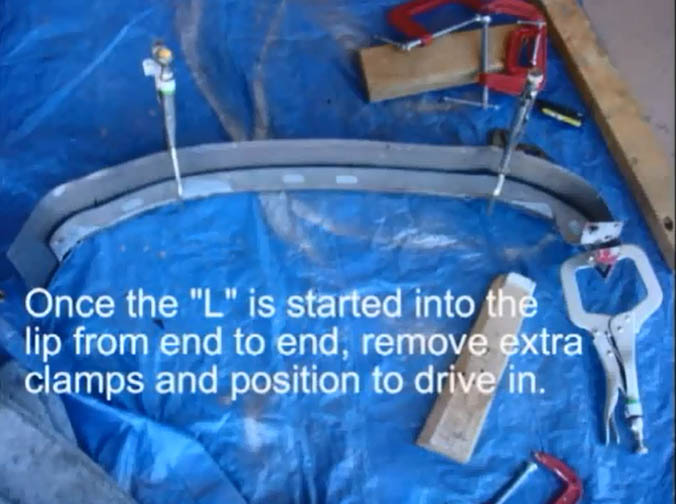

![](champfend32.jpg)

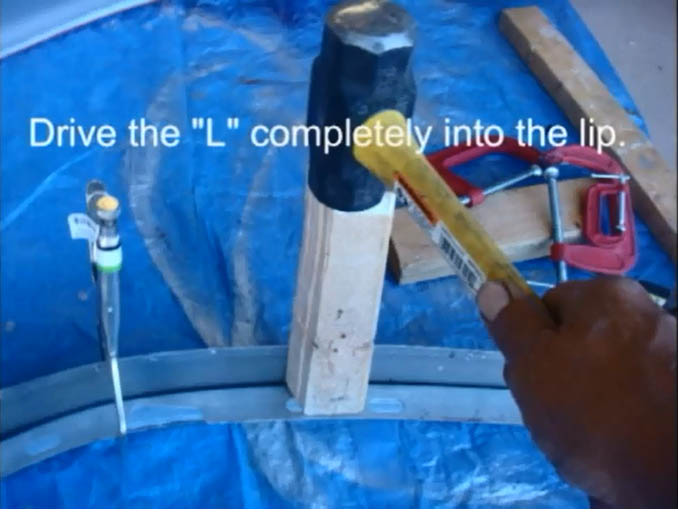

![](champfend33.jpg)

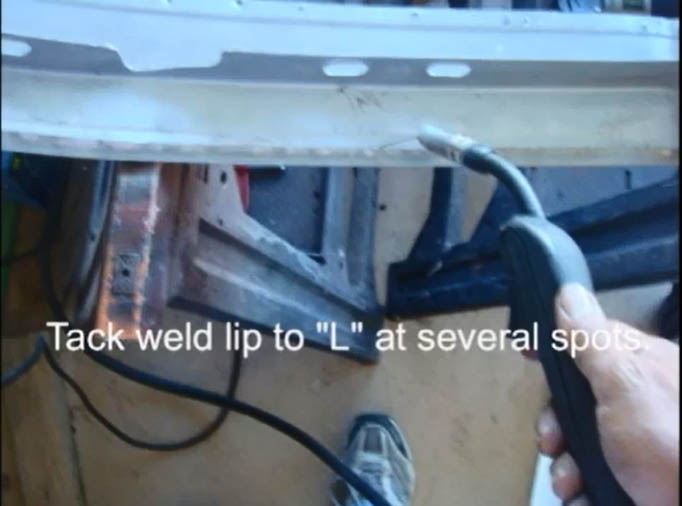

![](champfend34.jpg)
![](champfend35.jpg)
![](champfend36.jpg)
![](champfend37.jpg)

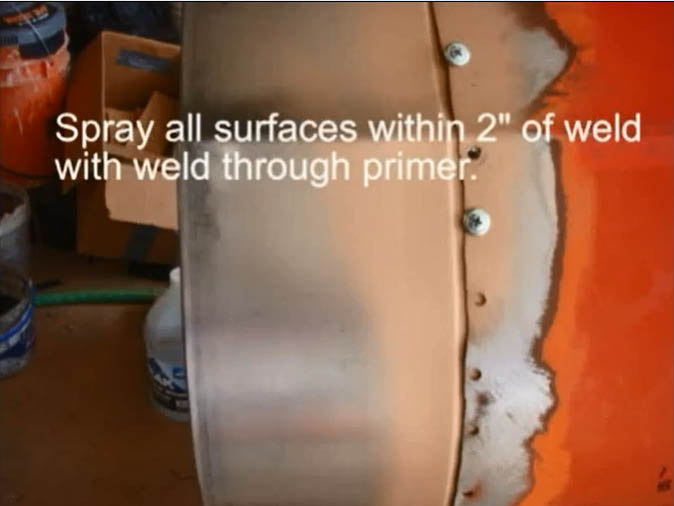

![](champfend38.jpg)

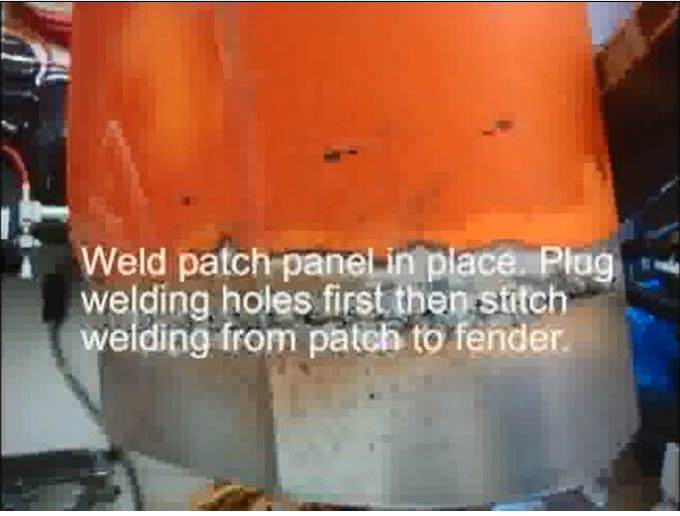

![](champfend39.jpg)
![](champfend40.jpg)

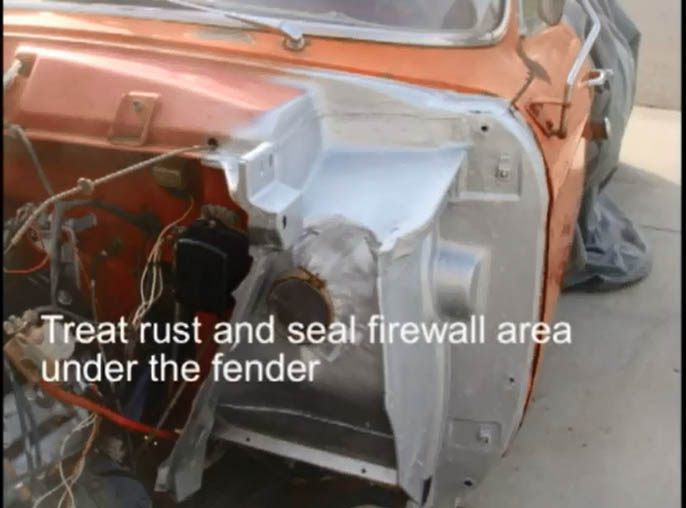

![](champfend41.jpg)

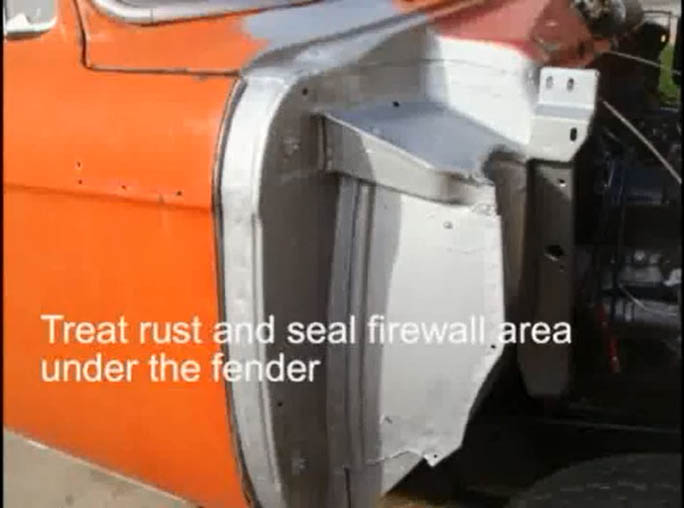

![](champfend42.jpg)
![](champfend43.jpg)

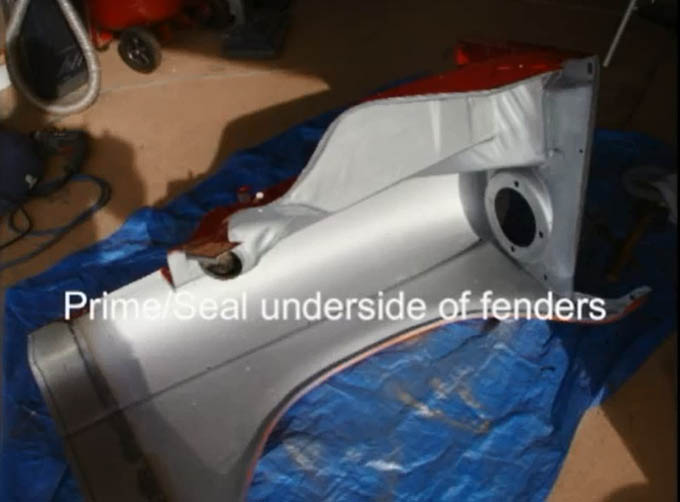

![](champfend44.jpg)
![](champfend45.jpg)

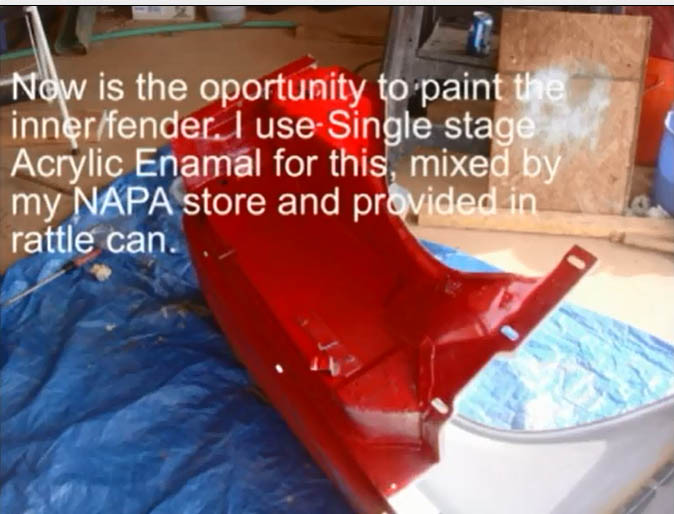

![](champfend46.jpg)
![](champfend47.jpg)
