Studebaker COLOR Wiring Diagrams - Oct 2023

Courtesy - Cinco - SDC Forum - Oct 2023

1939 Studebaker Champion

11 pages

1940 Studebaker Champion

11 pages

---

1941-46 Studebaker Champion

12 pages

---

1941-46 Studebaker President

12 pages

---

1941-48 Studebaker Trucks

11 pages

---

1947-49 Studebaker Champion & Commander

---

1949-53 Studebaker 2R Trucks

11 pages

---

1950 Studebaker Champion & Commander

15 pages

---

1951 Studebaker Champion & Commande

15 pages

---

1952 Studebaker Champion & Commander

15 pages

---

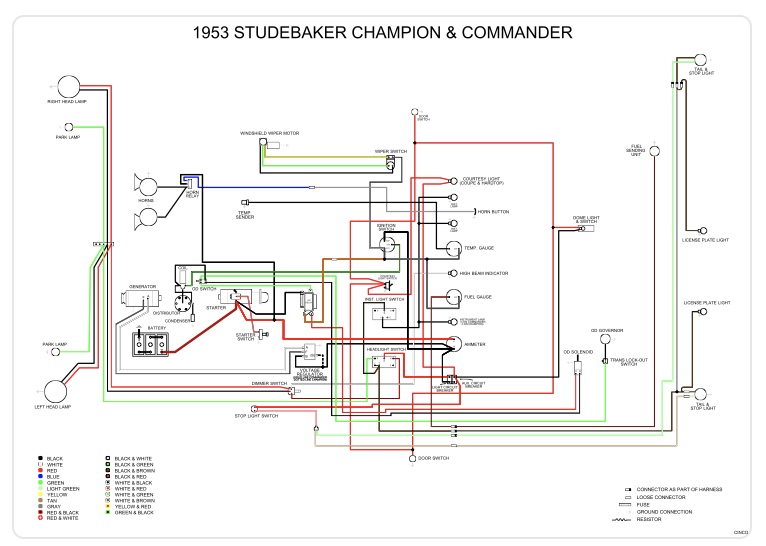

1953 Studebaker Champion & Commander

14 pages

---

1954 Studebaker Champion & Commander Color

14 pages

---

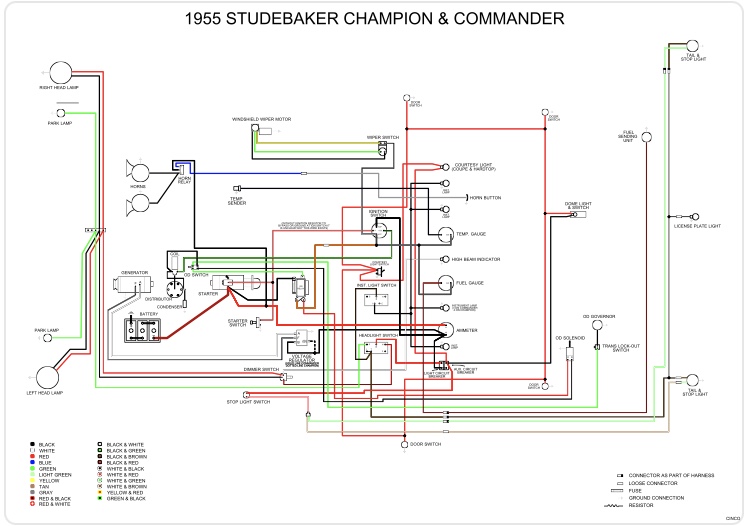

1955 Studebaker Champion & Commander Color

14 pages

---

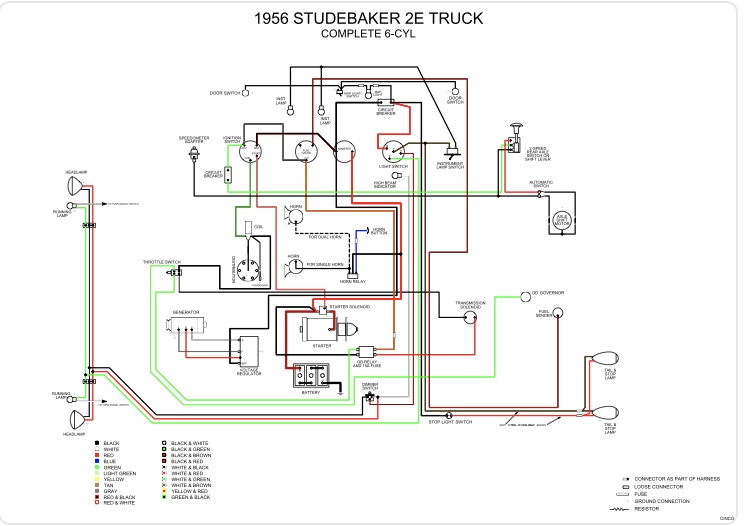

1956 Studebaker 2E Truck Color

---

1957 Studebaker Silver Hawk

---

1957-59 Studebaker 3E & 4E Trucks Color

---

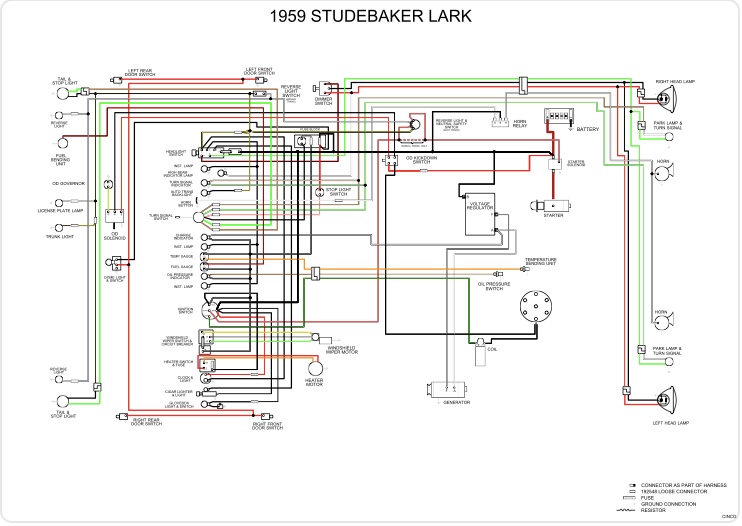

1959 Studebaker Lark Wiring Color

16 pages

---

1960-62 Studebaker Hawk

16 pages

---

1960-62 Studebaker Lark

16 pages

---

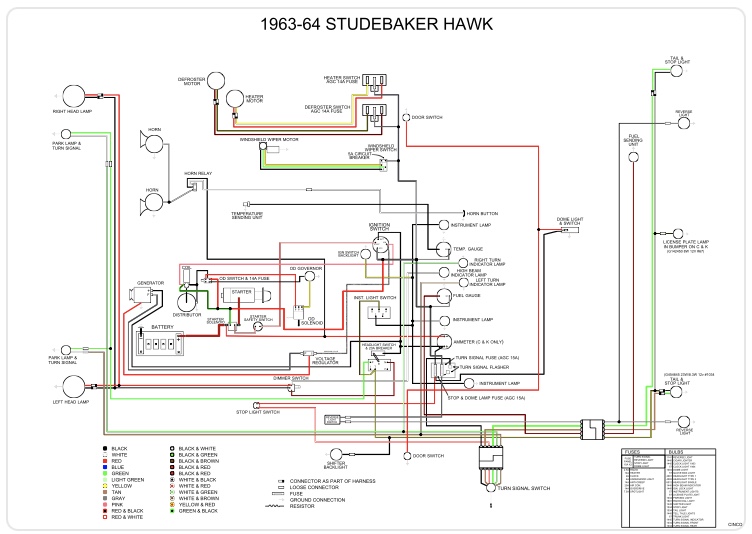

1963-64 Studebaker Hawk

15 pages

---

1963-64 Studebaker Lark

16 pages

---

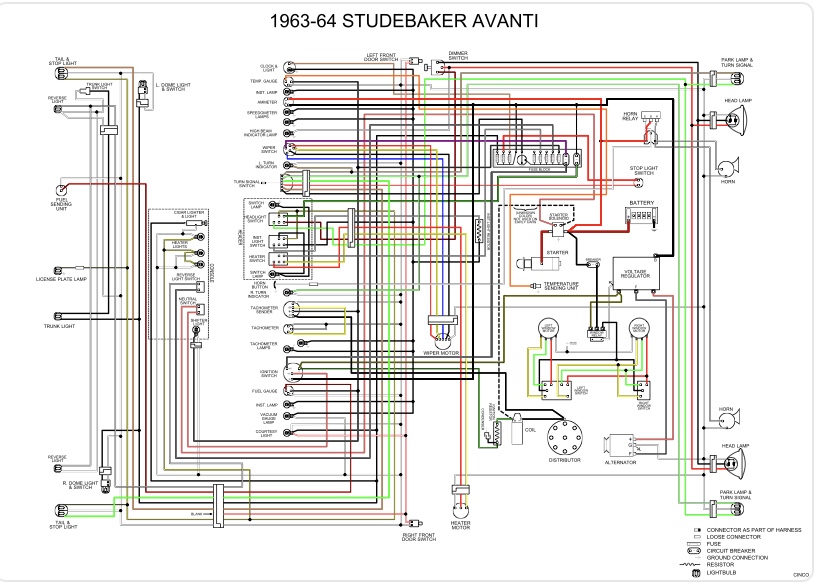

1963-1964 Studebaker Avanti

17 pages

---

1963-1964 Studebaker GT Hawk

15 pages

---

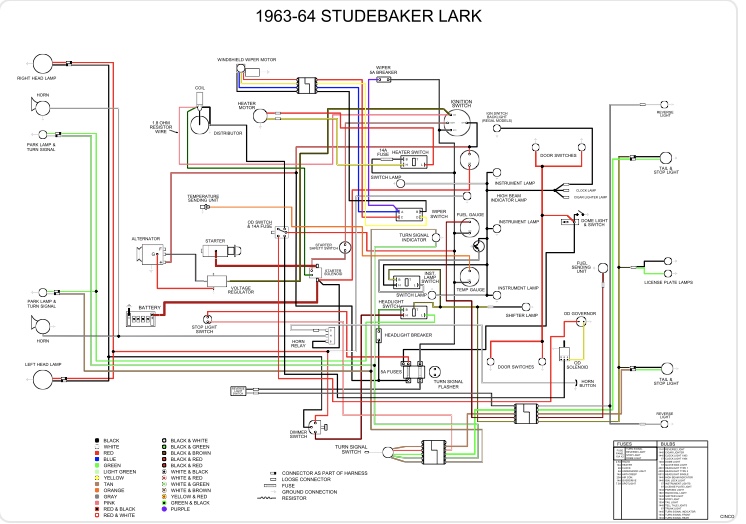

1963-64 Studebaker Lark Wiring Color

16 pages

---
