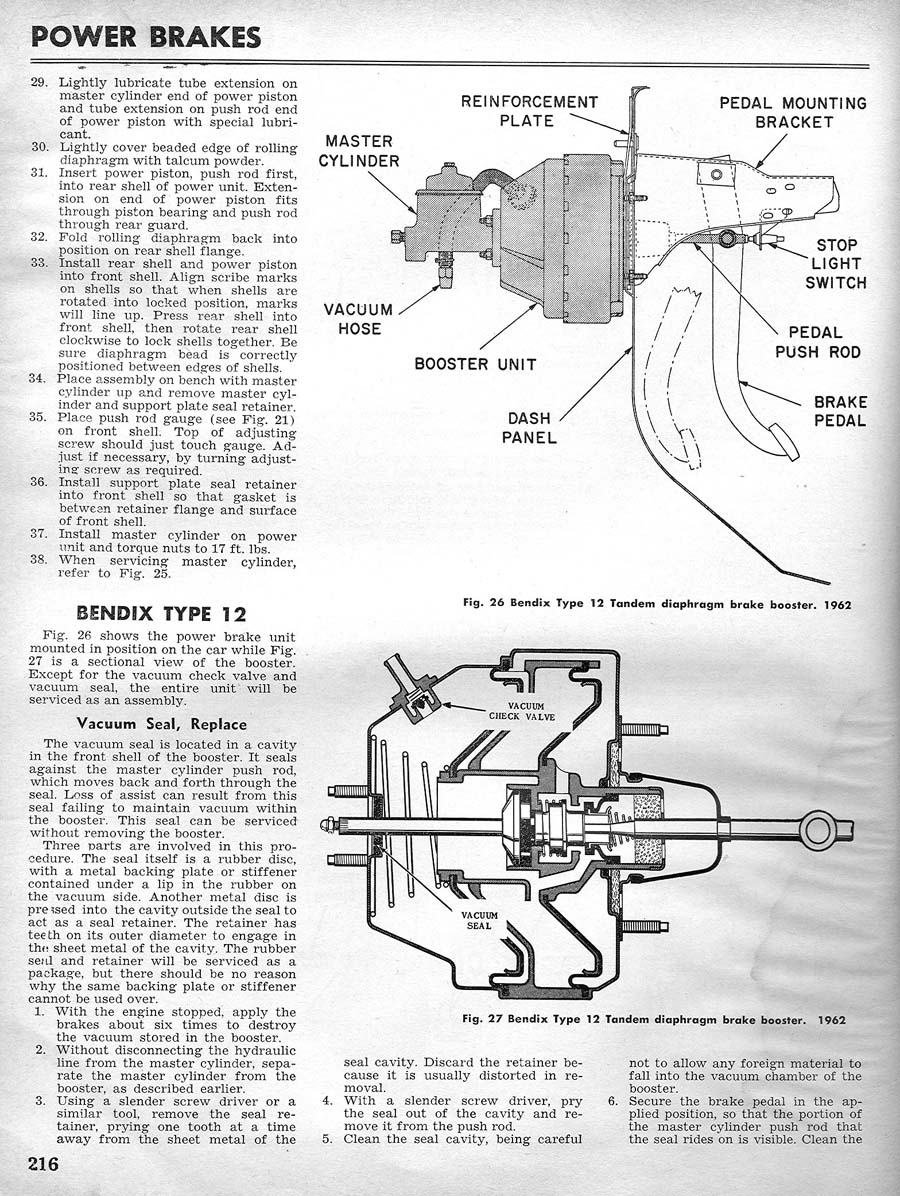

1965 Motors manual -Studebaker Power brakes & Steering 1958-1965

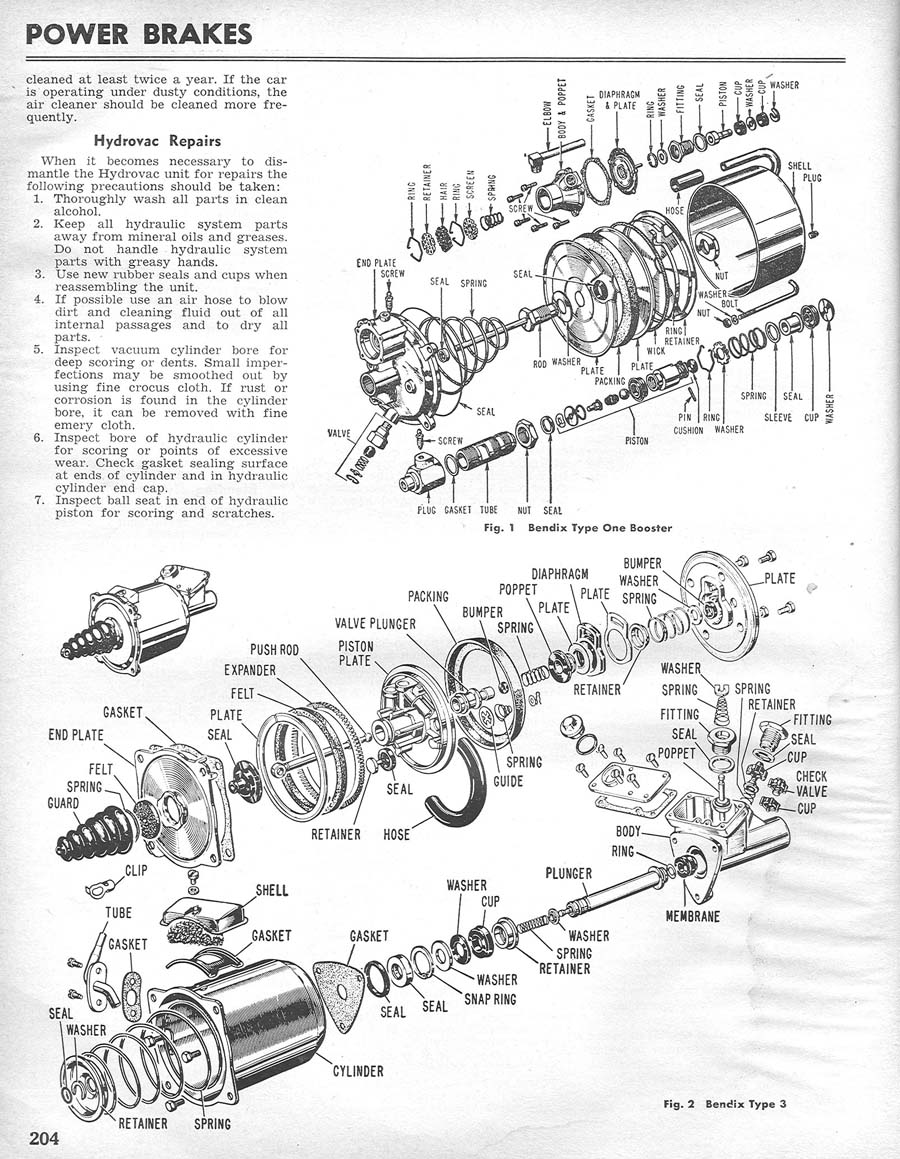

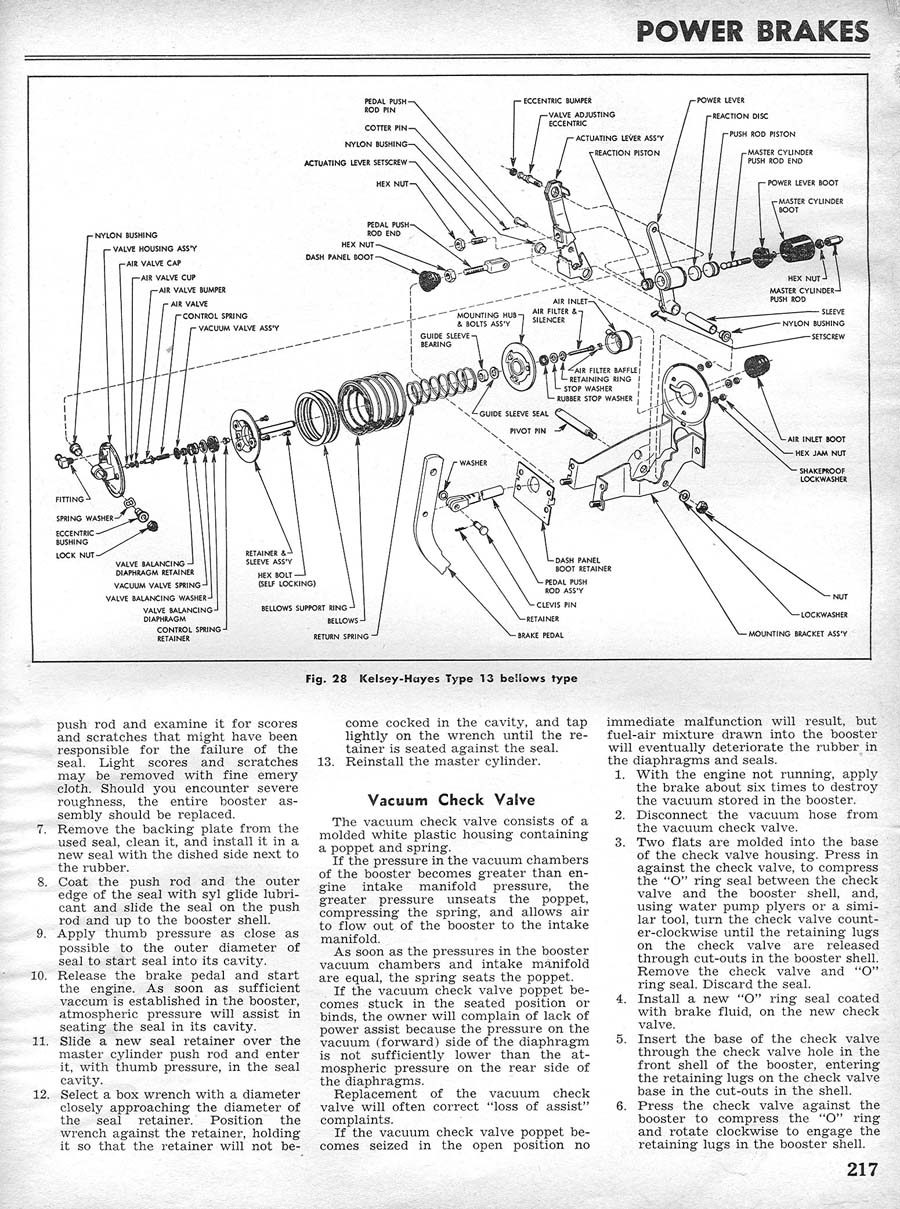

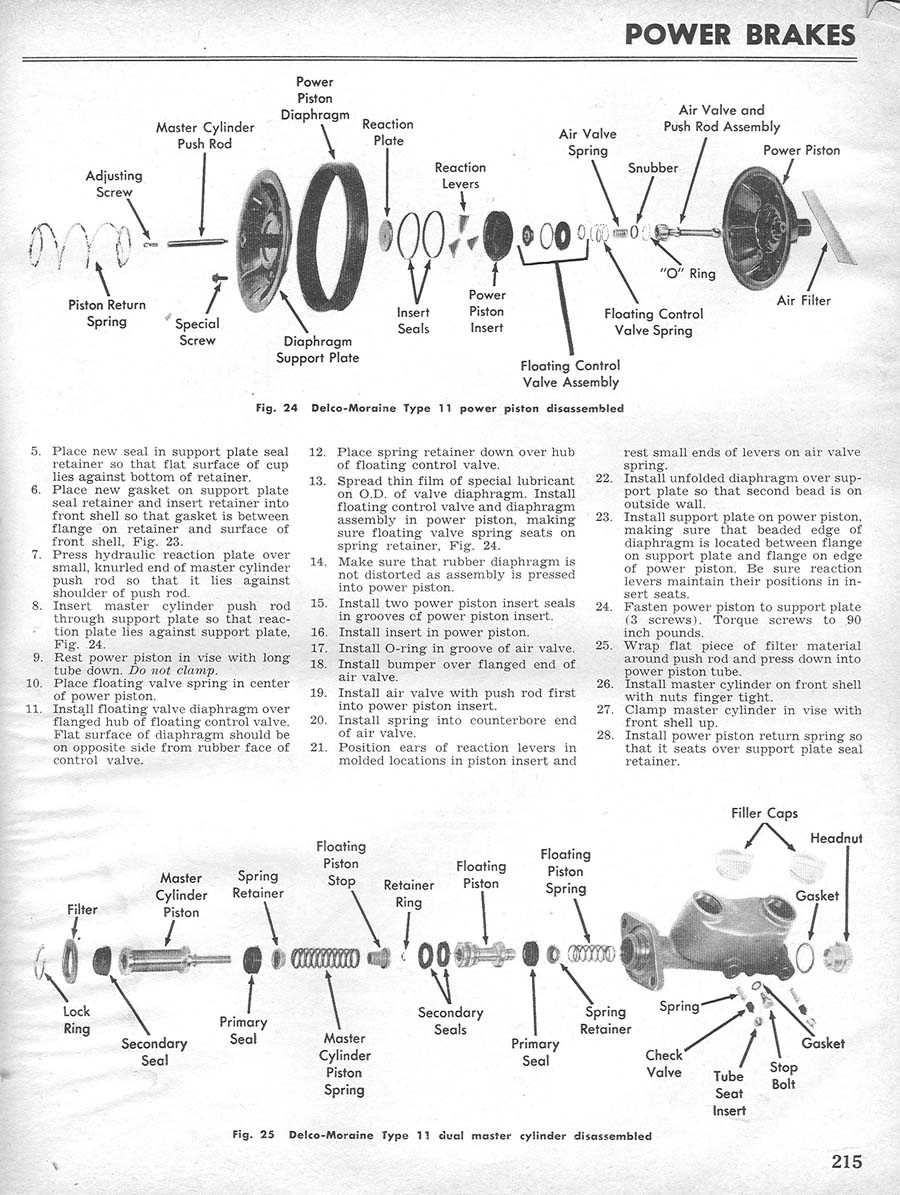

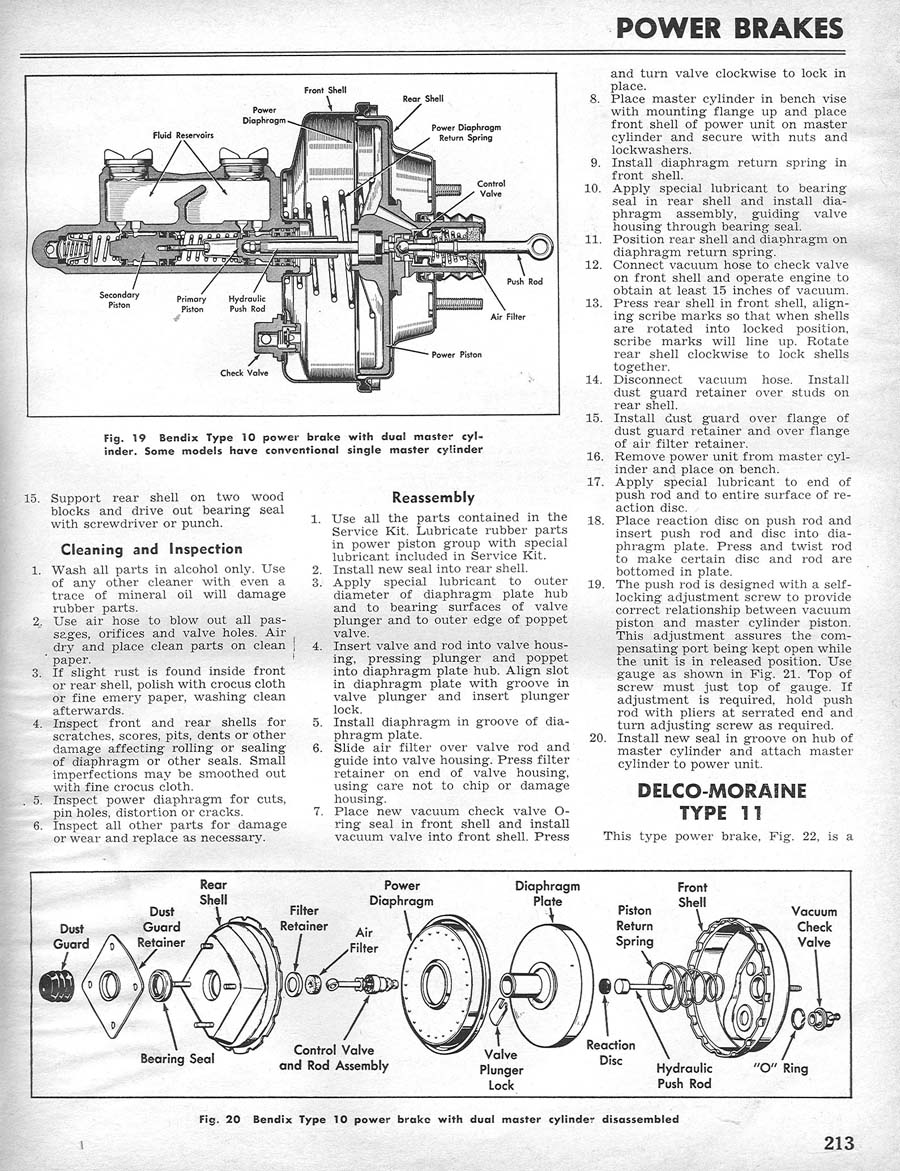

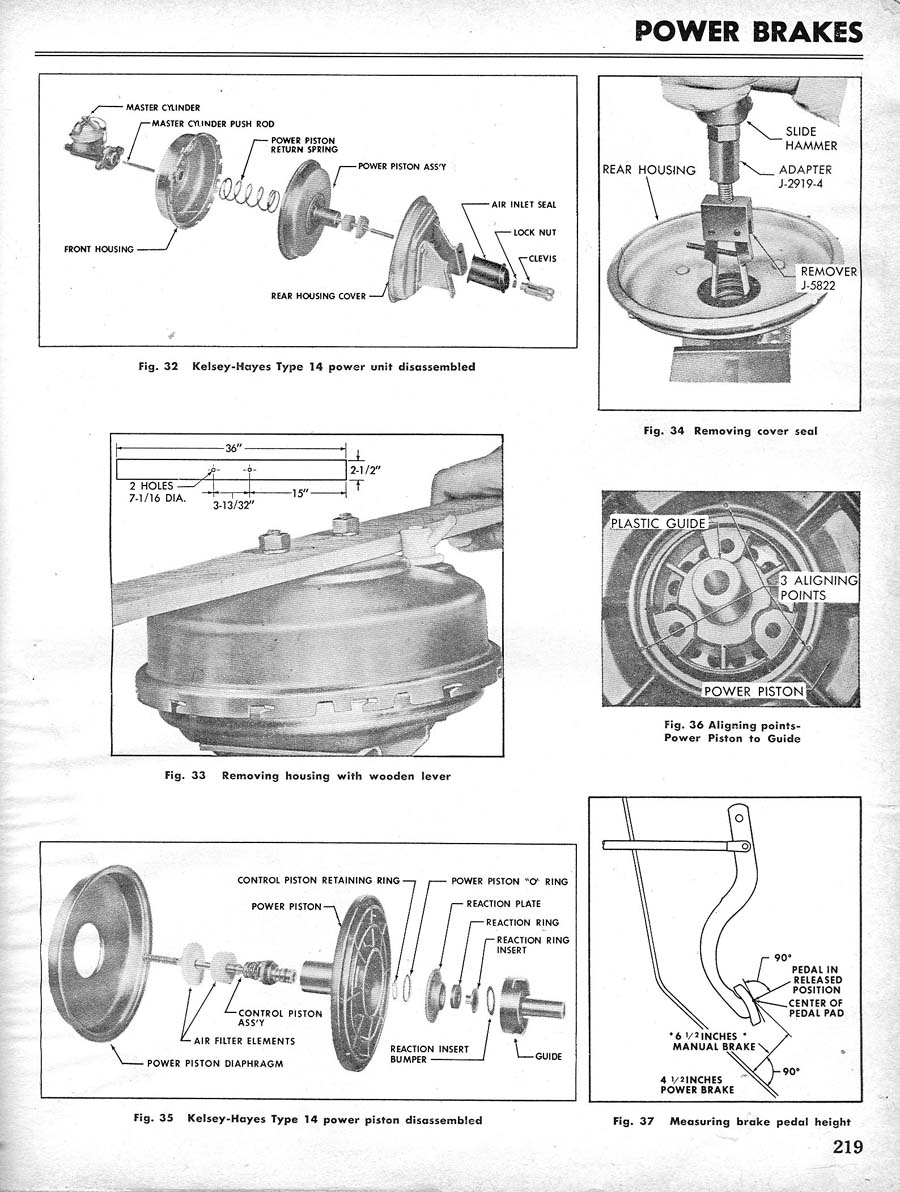

Note: The Bendix type 1 Hydrovac was used from 1953 until 1964. The Bendix type 12 or 17 were used on Avanti's and Disk brake Larks. The other sedan firewall type boosters are one of the Kelsey or Moraine types. You'll have to compare yours to tell which one, but they are reported to be full size Chevy type.
