A Better Idea
by George Hamlin
It all started with this one customer who came into the Whattoff Studebaker dealership in Ames, Iowa, in early 1952 and inquired about the price of a pickup truck. He was interested in deleting the box from the order, and Vernard Whattoff casually asked why: chassis-and-cab orders were common enough on the larger trucks, but not on the 3/4 ton jobs.
The man was in the business of transporting trailers -- mainly what were then called house trailers until that name got tarnished by association with trailer parks, so they became mobile homes. His problem was meeting different overall length requirements of the several states, primarily the one he was based in.
To understand the trucking business in the 1950's requires knowing about Iowa's famous 45-foot limit. Other nearby states permitted longer combinations, but the Iowa legislature was not convinced that tractor trailer rigs over 45 feet long were safe. (Iowa was also just about the last holdout against the double bottom road trains that came in 20 years later.) The truckers complained, loudly; they applied political pressure at all levels (including the federal level, which is how they got the double bottom rigs legalized in all states); but they had to put up with the limit because Iowa sat astride America's main east-west routes: U.S. 6 and U.S. 30. The favored route was U.S. 30, because it bypassed the metropolitan areas of Omaha-Council Bluffs, Des Moines, and the Quad Cities (Davenport-Moline-Bettendorf-Rock Island), while U.S. 6 plowed right through them. For a while the truckers threatened to bypass Iowa entirely, but the threat was empty because the alternative was U.S. 40 down in Missouri. Choosing that route meant putting up with Kansas City, Saint Louis, and Springfield (Illinois), plus a long detour up U.S. 66 to get to Chicago. Under the circumstances, most truckers chose to establish big marshaling yards at Denver and change trailers. Clearly, however, this sort of option was not available to the transporter whose cargo was the trailer rather than the contents, so these operators had to keep the length of the prime mover as short as they could.
Vernard Whattoff examines his Toter
Whattoff's customer wanted, in effect, a tractor, but not the regularly available ones, rated at 20,000 pounds G.V.W. and up. They were too much, both in capacity and cost, just to haul empty house trailers around. Besides, they still had too much wheelbase and a 5th-wheel hitch, useless for house trailers. He wanted a 3/4-ton tractor. His solution was to make his own by cutting the frame of a pickup and shortening the wheelbase, mounting the hitch right behind the cab. The resulting wheelbase would turn out to be about 80 inches, and for those who haven't thought much about that before, we will assure you that an 80-inch wheelbase on a full-height vehicle does not give a boulevard ride. Whattoff tried to bring the subject up gently; Won't that ride a little hard? he asked. Not with a trailer behind, that is, but while deadheading -- returning home empty after the trailer has been delivered. Sure, said the customer. But you just have to put up with it.
But it was the safety aspect that really bothered Vernard Whattoff. A vehicle like that, operating on 2/3 of the wheelbase it was designed with, was flat unsafe. It would do peculiar things on washboard surfaces and corner strangely, even on dry pavement. What it would do in an Iowa winter was something else again. And it was then that Whattoff's inventive mind changed the trailer transport business with a casual question.
I was coming home for lunch one day and I suddenly thought, say, why don't we make a truck with a telescoping frame? Such a truck could have it both ways: full wheelbase for riding empty, short wheelbase for towing. Whattoff called the prospect and asked him if he would be interested in such a vehicle, and he expressed a reluctant willingness. First, of course, Whattoff had to prove the thing could be built. We ordered a new 3/4 ton frame from South Bend. Frame only, says Whattoff. We were too chicken to experiment with a whole truck.
The Dealership that Could

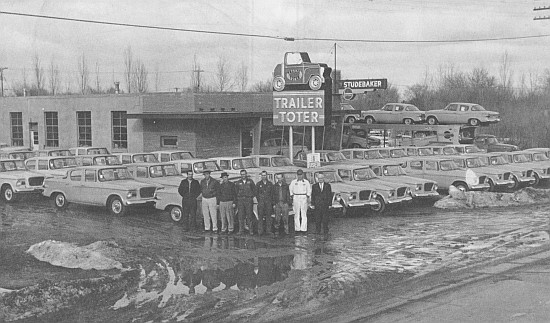

|The Whattoff Motor Company front lot in early
1959, surrounded by spring mud, melting snow, and hundreds of Lark 4-doors
for the Iowa State Highway Commission. Notice the Trailer Toter sign
prominently displayed. Also visible is a portion of Lincoln Way.
Left to right: general manager Vernard Whattoff, salesman Bain Crowl, sales manager Donald Whattoff, mechanic ????, mechanic Jim Henry, parts attendant Dick Milligan, mechanic Wayne ??, accountant Russ Eckart.
Steady growth attended the dealership, and in 1955 the brothers decided to move from the in-town location at 118 Hayward to a new site outside of town: 3605 West Lincoln Way. Automobile fanciers will recognize that a street with that name either is, or was, U.S. 30; as observed previously, one of the major east-west transcontinental arteries. In the days before U.S. 30 bypassed Ames, that street carried all the east-west traffic not interested in going through Des Moines. Automobile customers coming in to Ames from the west had to pass by Whattoff's , and the truckers passed it every day. The operating principles never changed during all this time: Vernard was general manager, Don was sales manager, and the customer was king. We tried to go by the Golden Rule and it worked, says Don.
All of Ames was pretty Studebaker-conscious in those days, and when the Lark came out, Whattoff made the most of it. Locals were treated to the sight of a brand-new salmon-painted V-8 Lark that just cruised the streets all day long, obviously with orders to wear out the tires as quickly as possible. Nobody but the street rodders could keep up with the thing; it left traffic lights and stop signs at astonishing speeds, always attention-getting but never obnoxious. Limited national acclaim came when the brotherhood in the Iowa State chapter of Sigma Alpha Epsilon fraternity chipped in to buy a new car for their beloved housemother -- and chose a Lark. (The joke was on them; they bought the lady a six.) Perhaps the high point came when Whattoff bid on a large fleet order for the Iowa Highway Commission -- and smugly walked off with an order for several hundred cars. That first success was followed by others in 1959-60, putting hundreds of Studebakers in the state fleet. The Chevy and Ford dealers didn't like that too much, either. We made very little per car on those fleet orders, says Don. The idea was mainly to get more Studebakers on the street.
But it was going to be trucks where Whattoff Motor Company left its mark on the Studebaker story.
Success the First Time

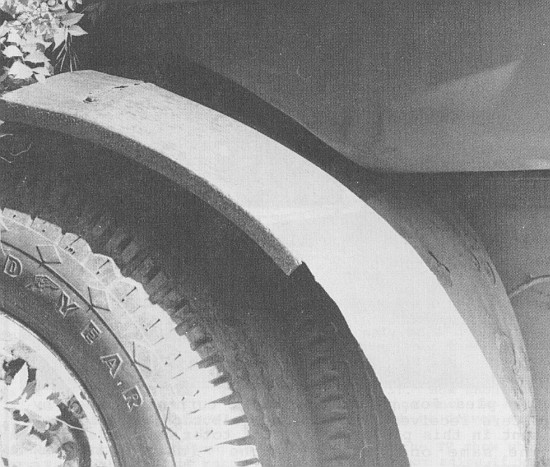

In shortened position, the Toter's rear wheels and fenders come right up to the modified cab.
With the experience available to it in 1952, the Whattoff back shop was well equipped to tackle conversion of the 3/4-ton truck to Vernard Whattoff's idea. The new frame came in from Studebaker and the boys started marking and measuring, says Vernard. And cutting. They needn't have feared working on a whole truck, because the telescoping frame worked out on the first try. Once we had the frame, we went over to the dealer in Webster City, bought another pickup, and moved everything over. Most of the driveline was unchanged, although the driveshaft caused some momentary thought. A telescoping shaft was considered and rejected because the lengths didn't work out right, and because the trucks would sometimes be operated at high speeds (I've seen 'em do 100 miles an hour). Precision engineering would have been required, and the shafts are out in the weather, which would have interfered with the precision. So two shafts were supplied, with slip yokes on the transmission and differential (depending of the application, one 20 to 24 inches, the other 55 to 60 inches long). Shortening and lengthening the frame was accomplished with a cable winch and a 2-ended pulley setup. In its shortened version, this hauler came down so short that the rear wheels actually rubbed the back of the cab, so clearance space was cut into the lower back cab corners.
A common size for a house trailer -- ah, mobile home -- in those days was 8 by 35 feet; so to meet the 45-foot limit, Whattoff's prototype was rigged so that its overall length could be cranked down to 10 feet. The 2R11 pickup was chosen to get the Commander six, and the Borg-Warner overdrive transmission was modified with a toggle switch to provide the operator with six selectable speeds.

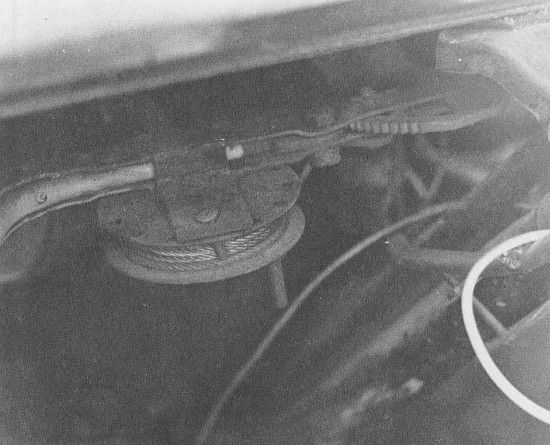

Handbrake cable adjustment for variable wheelbase is this storage reel on the handle.

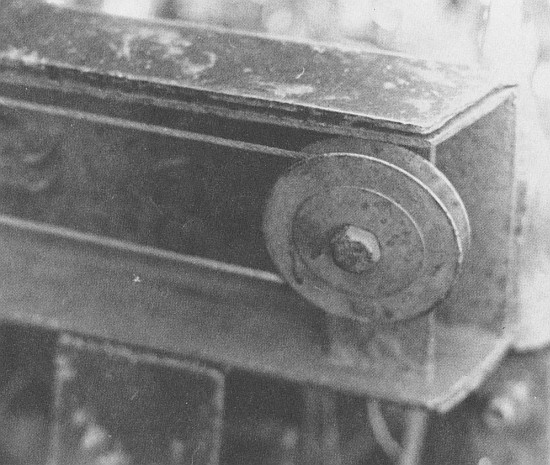

Brakes were easy. Long brake hose, says Vernard. Just loop it and hook it. When we were lengthening the truck, we'd just unhook it -- if we didn't forget. The handbrake cable was shortened with a pulley rigged to the operating handle. The rear was converted for dual wheels. Other folks were using 1/2 ton trucks for this work, or even a car, always with single rear wheels. Our trucks always had duals, even the 3/4 ton version. We pressed out the studs and got longer ones. This trick, we might add, is a tribute to the Studebaker chassis, because just putting duals on some rear axles will cause bearing failure, even reversing the wheels will cause failure in marginal designs -- for example, on the Volkswagen bugs when the rodders tried that stunt.
And there on the shop floor stood a completed truck of new and inventive design. The Whattoffs named it the Trailer Toter and began to market it through the steady stream of interstate traffic that came by their door.
A Growing Business
The Trailer Toter took off steadily and profitably. It did not take long for Whattoff to become a major player in the truck business, and the dealership was having an effect in both South Bend and Detroit. We needed lots of heavy-duty equipment once we really started selling Toters, says Vernard. We made Toters out of Studebaker trucks of all types, with engines of all kinds. The 5-speed overdrive transmissions, for example; Studebaker made them available for the Toter operation at Ames. We started pushing Studebaker to offer a Diesel 5-10 years before it finally did. It was nominally a condition of franchise that a Studebaker dealer had to buy some trucks along with the cars, and most of them chose to buy the cheapest pickups and sell them at cost just to meet the requirement.
They were required to do that on paper, chuckles John Duncan, who during this period was Studebaker's Fleet Sales Manager. But so many of them didn't bother, and mainly it ws overlooked. They [in South Bend] were so tickled any time somebody ordered a truck they didn't know what to do. But Whattoff was really selling lots of trucks.
Vernard Whattoff agrees. We were getting Studebaker to offer more equipment while other dealers were grumbling about having to sell a couple of pickups. When the Toter operation began, Studebaker's largest truck dealer was Freeman-Spicer in South Bend, but Whattoff soon overtook the home-town folks.
Around 1956, when the E28 came out, we became the largest Studebaker truck dealer, says Vernard. The other truck makers were not unaware of what was happening, either. G.M., Ford, International engineers would come out here. They'd look at our relatively small shop, without sophisticated tools. Then they'd look at the finished product. They couldn't understand how we did it. The finished product was maturing. There was now some major surgery in front to cut down on the wasted space in front of the radiator. This meant removing the fiberglass front (Vernard! Where did you put all those things/) and shortening the hood a little, but the basic Studebaker appearance remained. Even the open STUDEBAKER nameplate was retained, but reinstalling it in the shortened hood caused the E and the B to be unnaturally joined upon close inspection.

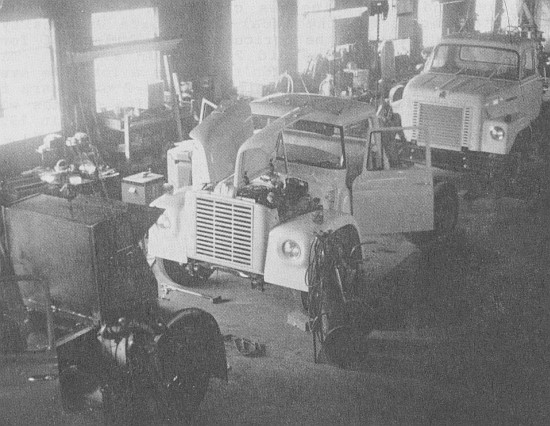

International Toters in progress - 1972 at the Lincoln Way dealership
In 1958 Whattoff added the International line. We were loyal to Studebaker but you'd better give the man [the customer] what he wants. It helped expand the business. We can testify, having heard it more than once, that a customer asking after conversion on another make would be told, We have better luck with Studebakers. Such a response had even more credibility when it came from a dealer who handled more than Studebaker. Meanwhile, the development of the Toter continued.
We had one experimental job, a one-off Studebaker, that we did, recalls Vernard. It had a one-man cab. On the right were the tires, tools, and gas tank. It was wrecked. The central idea with that truck was the same as always: get the length down. Eventually they got the length down to 8 feet; the Toter 8 was built from 1960 through 1963 on Studebaker chassis, with some 4 - 53 GMC and some Chevrolets. The wheelbase was 64-88-112 inches, giving overall lengths, bumper to ball, of 8 - 10 - 12 feet. The front end surgery required for this one changed the looks of the truck completely, involving as it did the removal of all the space in front of the radiator. The bumper was flattened and brought way back; the fenders and hood were sectioned, folded back, and rewelded; and a new stylish grille was bolted on to what was now a completely flat front. We went out and bought some cold-air registers, chuckles Vernard. Later on we upgraded them a little. They still looked like cold-air registers, but Studebaker used the same idea on its 8E Diesel fronts, and all of the other truck makers have picked up the idea of a snubbed nose to save length.
