GT HAWK with suspended Brake pedal

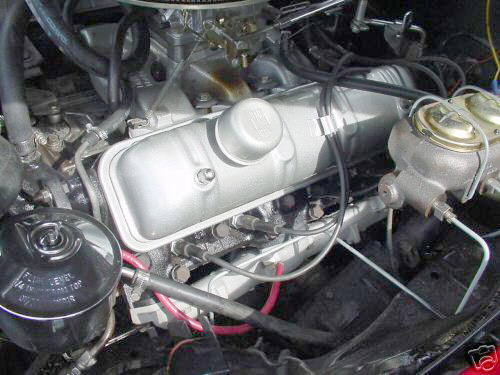

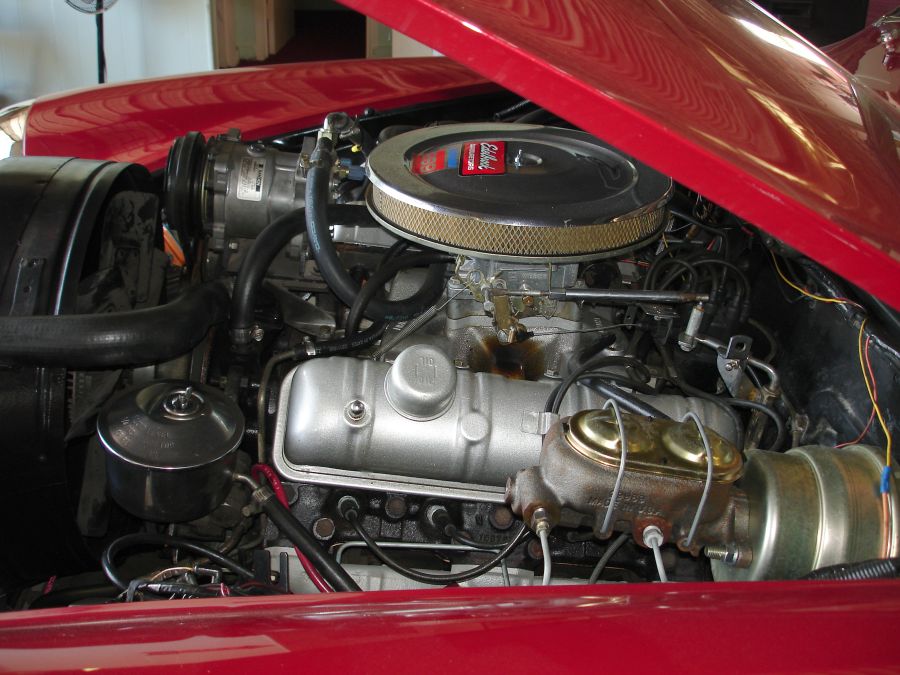

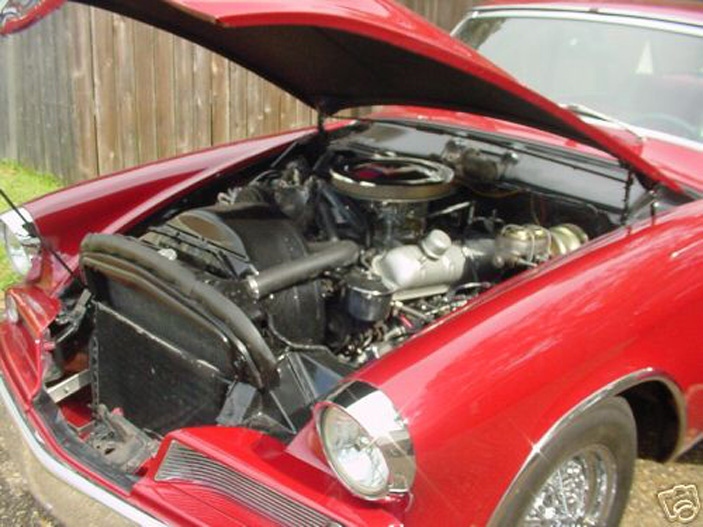

( (This car was on Ebay. I emailed the seller to take more pics of the setup. He said it wasn't his car, but took the underside pics. No part names or numbers, however the Master cylinder is a Camaro/Firebird type and the booster may be a GM)


64gthpaa.jpg 64gthpbb.jpg 64gthpc.jpg
gthawkspz.jpg 64gthpee.jpg 64gthpdd.jpg
mvc0010f.jpg mvc0011f.jpg mvc001f.jpg

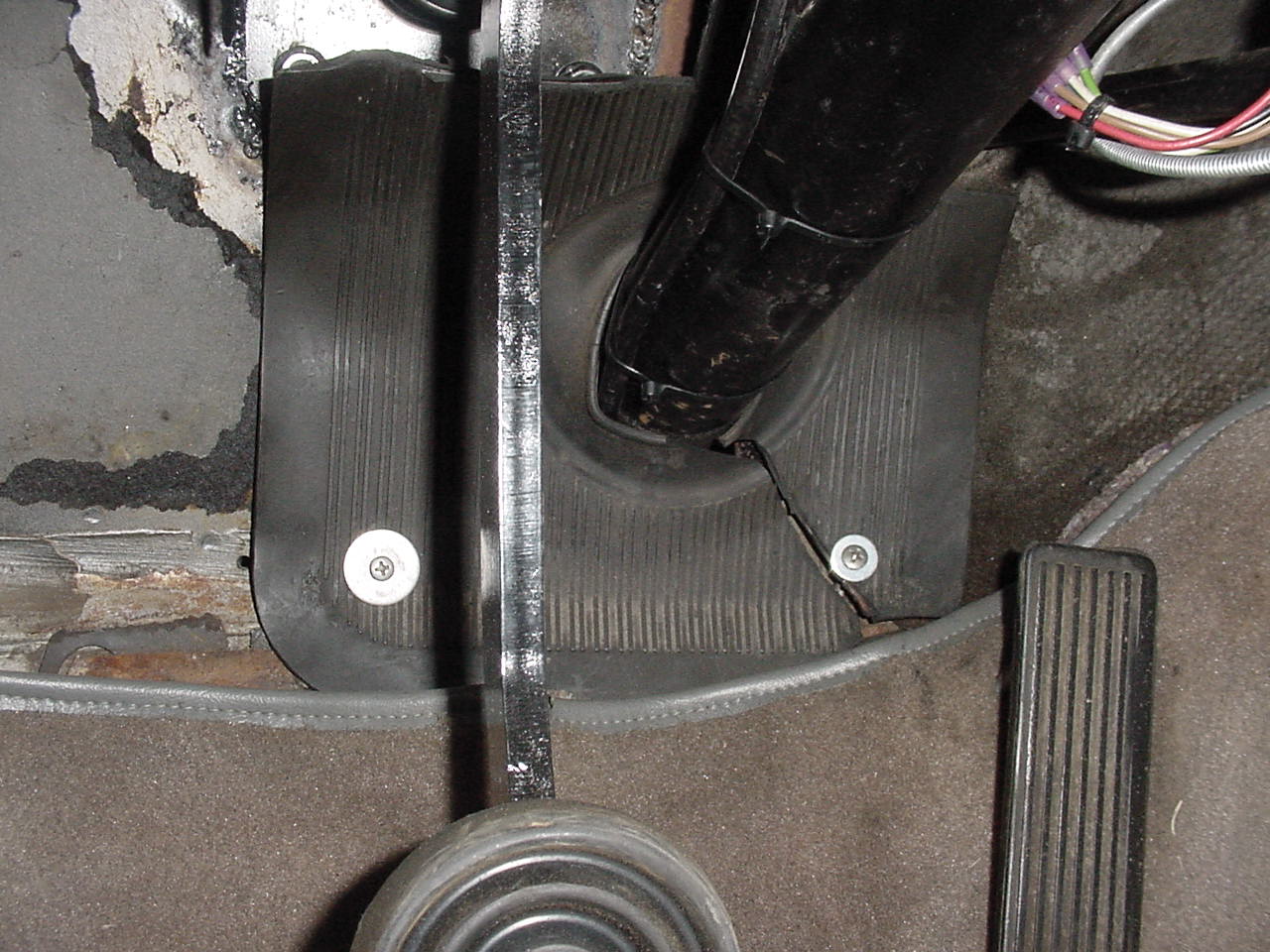

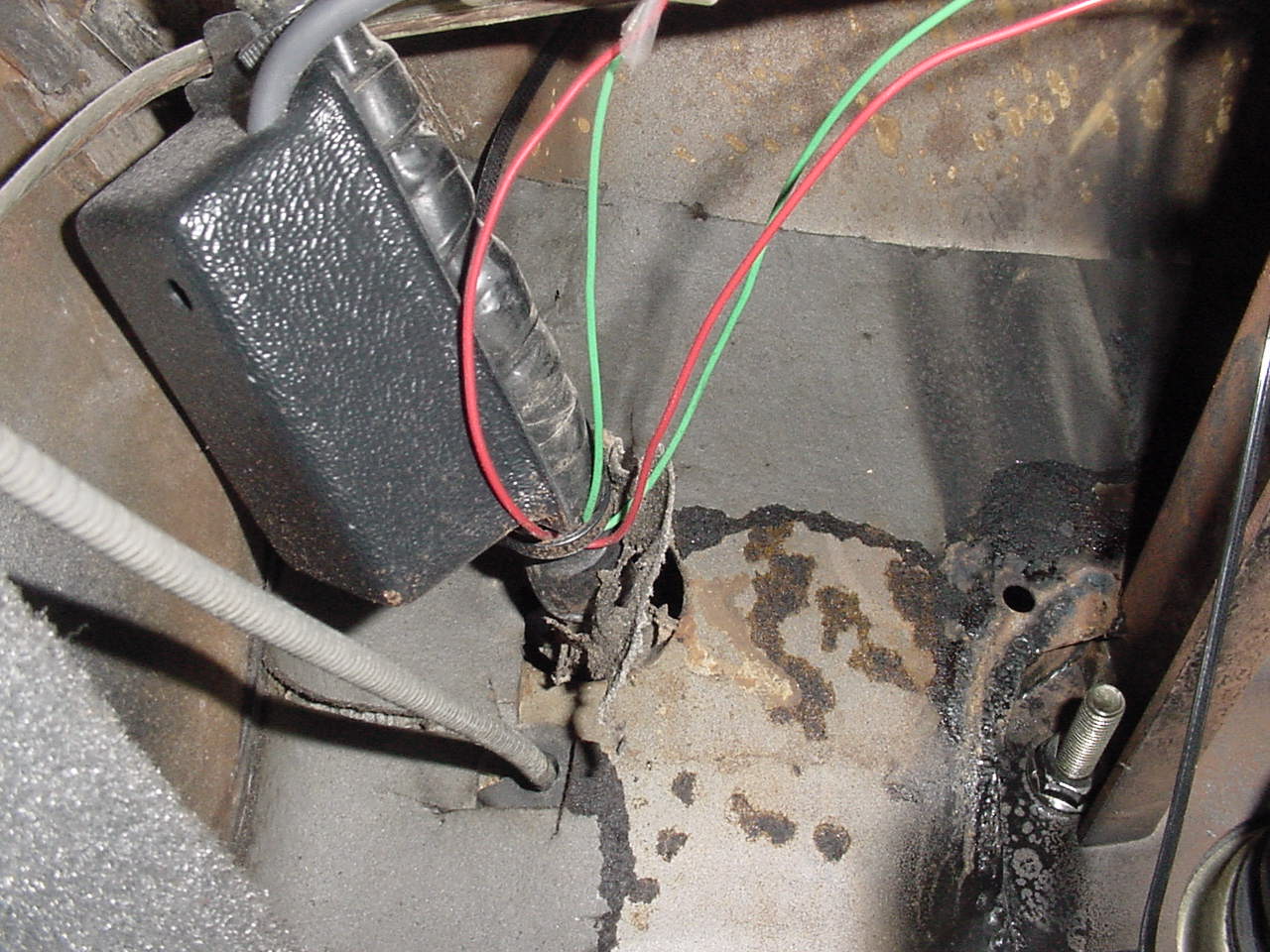

( Anyone recognize the pedal assembly. Notice the bracket under the dash appears to go from firewall to dash brace and the actuator rod is somewhat longer than most. Round pedal might indicate a truck setup )
