Studebaker Ignition Switch

Jan 06

bayonet style ignition switch - Studebaker from 1955 through 1966

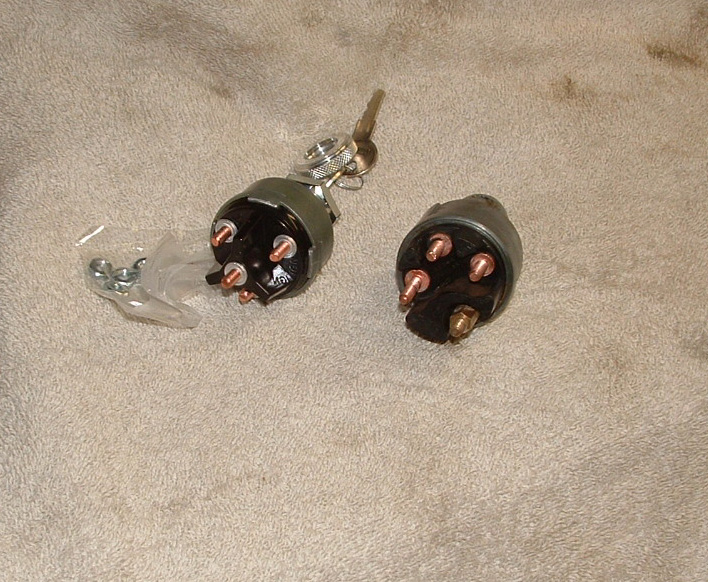

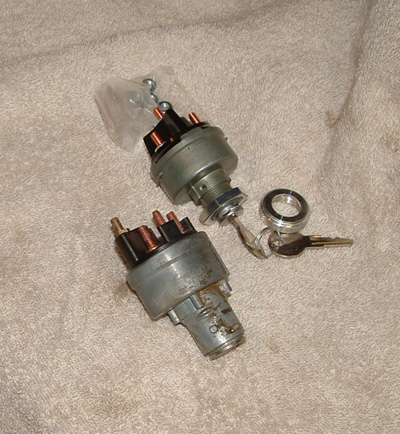

NAPA auto parts # KS 6180. It is exactly like the stude switch except the bezel will not work. You can take the guts out and put it in your switch housing, or take the KS 6180 tumblers out and put them in the Stude switch, or you can just use the KS 6180 as is. These switches are sold in lots of FLAPS under lots of names, but all seem to be by the same manufacturer.The hookup on the switch is the same as the stude. -------------
Editors note: Switching the internals as described above, is not
for the uninitiated.
180106a.jpg 180106b.jpg
