Thread: R-1 spark plugs

  1. #1
    Senior Member 53k's Avatar
    Join Date
    Oct 2004
    Location
    Harpers Ferry, West Virginia, USA.
    Posts
    2,633

    R-1 spark plugs

    I tried search and couldn't come up with anything so...
    While I had the shielding off R5527 I decided to pull a plug. It is a UJ-12. I think I have used J-12Y in the past, but the shop manual calls for a J-9Y. In the thumbnail below you can see a lot of difference between the two. Anyone know the story on UJ 12. It is stamped "Made in England" while the J-12Y is stamped "Made in America".
    I don't even remember seeing a J-9Y. Is my memory that bad?
    Attached Thumbnails Attached Thumbnails Click image for larger version

Name:	Avanti sparkplugs.jpg
Views:	24
Size:	90.6 KB
ID:	2731

    Paul Johnson, Wild and Wonderful West Virginia. '64 Daytona Wagonaire, '64 Daytona convertible, '64 Avanti R-1, '53 Commander Starliner, Museum R-4 engine, '62 Gravely Model L, '72 Gravely Model 430 with Onan engine

  2. #2
    Senior Member N8N's Avatar
    Join Date
    Oct 2004
    Location
    Falls Church, VA
    Posts
    6,584
    From an old Champion catalog that I have, a "U" prefix means that the plug has a "booster gap" whatever that means. I don't know that they are still in production.

    I believe that a standard R-1 or R-2 should use J12Y plugs, which in today's world likely means J12YC or RJ12YC. Now whether those are the same exact heat range as the old J12Y I do not know.

    J9Y was listed as "one step cold" but IIRC was discontinued by the time my Champion book was printed (late 60's) can't check now as it is already packed up.

    nate
    --
    55 Commander Starlight
    https://members.cox.net/njnagel

  3. #3
    Senior Member
    Join Date
    Dec 2005
    Location
    Ferndale, WA, USA.
    Posts
    8,784
    Where did you come up with those low (Cold) numbers Paul? The 9,'s and 12's are Racing Plugs, at the Studebaker Dealer I worked at, we always used Corvette, and I thought the recommended J or UJ18Y Champion Plugs for R1 & R2 Engines.
    StudeRich

  4. #4
    Senior Member
    Join Date
    Jun 2006
    Location
    Spokane, WA, USA.
    Posts
    2,029
    Hard to get a straight answer.

    The Avanti shop manual says R1-R2 J9Y
    The Studebaker shop manual says V8s H18Y and 6cyls J7

    The Champion book I have gives:

    Std 6 and V8s - H14Y
    R1-R2 -J12Y and sustained high speed only J10Y
    R3-R4 - J10Y

    jack vines
    PackardV8

  5. #5
    Senior Member
    Join Date
    Aug 2007
    Location
    Glenshaw, PA, USA.
    Posts
    237

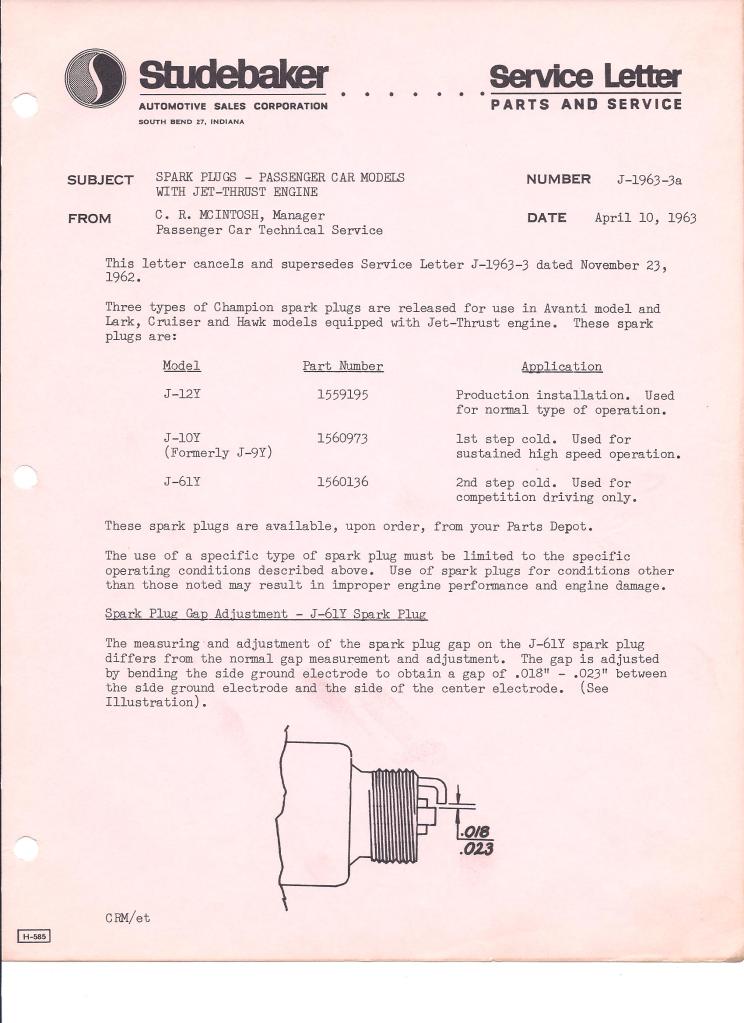

    Here is the factory service letter on spark plugs for the Avanti and cars with the Jet-Thrust engines.



    Bob Langer
    Glenshaw,PA


  6. #6
    Senior Member Gunslinger's Avatar
    Join Date
    Aug 2008
    Location
    Frederick, Maryland, USA.
    Posts
    738
    J12Y is or at least was the appropriate Champion spark plug for R1 engines. I remember it specifically because my 1964 Pontiac Bonneville used the same plug, as well as many GM engines of the same time period.

    I believe the AC cross reference is either 44S or 45S.

    Any brand plug of that cross references and is the proper heat range is fine for the engine outside of some specific need such as compression changes or oil burning.
    Poet...Mystic...Soldier of Fortune. As always...self-absorbed, adversarial, cocky and in general a malcontent.

  7. #7
    Senior Member
    Join Date
    Apr 2009
    Location
    Hawthorne, California, USA.
    Posts
    484
    The Champion UJ12 plug is way too hot for an R1 engine. The plug had an internal booster gap that Champion designed in the mid 60's that was supposed to promote a hotter spark. That plug is better suited to a flat head engine from the 30's or 40's. The correct plug for an R series engine is RJ12Y, the new number is 14 , the Autolite number is 85 and the AC number is R44S. Bud

  8. #8
    Senior Member 53k's Avatar
    Join Date
    Oct 2004
    Location
    Harpers Ferry, West Virginia, USA.
    Posts
    2,633
    Quote Originally Posted by Bud View Post
    The Champion UJ12 plug is way too hot for an R1 engine. The plug had an internal booster gap that Champion designed in the mid 60's that was supposed to promote a hotter spark. That plug is better suited to a flat head engine from the 30's or 40's. The correct plug for an R series engine is RJ12Y, the new number is 14 , the Autolite number is 85 and the AC number is R44S. Bud
    Thanks for the good info. I wondered why the UJ had such a long body.
    I removed the four right-hand side UJs and installed my NOS J-12Ys. I ran out of time (in the driveway), but I'll get the left hand ones out before I drive the car again. With just four J-12Ys the car idled smoother.

    Paul Johnson, Wild and Wonderful West Virginia. '64 Daytona Wagonaire, '64 Daytona convertible, '64 Avanti R-1, '53 Commander Starliner, Museum R-4 engine, '62 Gravely Model L, '72 Gravely Model 430 with Onan engine

  9. #9
    Senior Member
    Join Date
    Sep 2008
    Location
    Castro Valley, CA, USA.
    Posts
    1,887
    4 plugs in one setting not bad days work Paul, reminds me of this guy that had a 62 Gt and one day he said he was going to install some new Boush plugs because his car smoked so much, the next time I saw him a week later I asked him how they worked, he said he still had one more to install, one a day was his limit., this is a very interesting post as I have a ton of spark plugs and want to keep any that might fit the Studebakers, by a ton I mean enough to fill my truck bed.
    Candbstudebakers
    Castro Valley,
    California
