Bob's Studebaker Resource Website

Studebaker & Avanti wheels

......................Compliments of

[ Tire Codes/Facts ] [ Tire Size Formulas ] [ Tire Troubles ]

    Ace Alloy Style A-106 (NLA)
    Here's what I found for my car

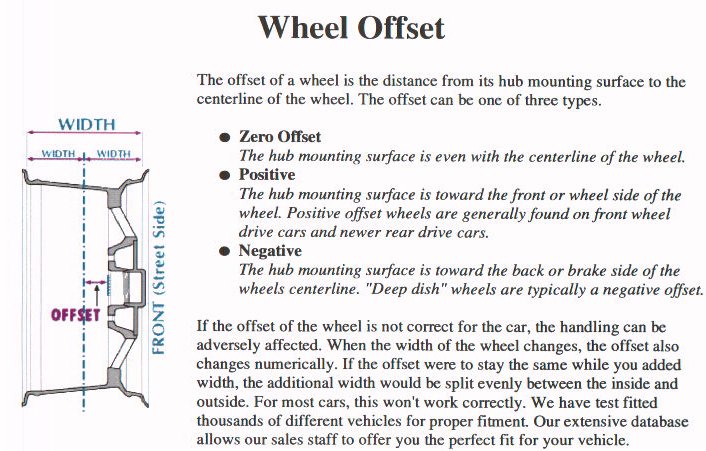

    16 X 7 , +15 offset, 5 X 114.3, 1580 Lbs load rating per wheel, T-6 Aluminum
    1 inch larger diameter, 1 inch larger width and the '+15mm' offset makes the fit a near exact replacement. The added width splits the wheel centerline plane evenly. The 16 inch size puts the tie rod inside the rim diameter and assures end to rim clearance.
    I use Pirelli P4000, 215/60VR16 on the front with absolutely no frame interference, 225/60VR16 on the rear.

    CLICK HERE for more info
